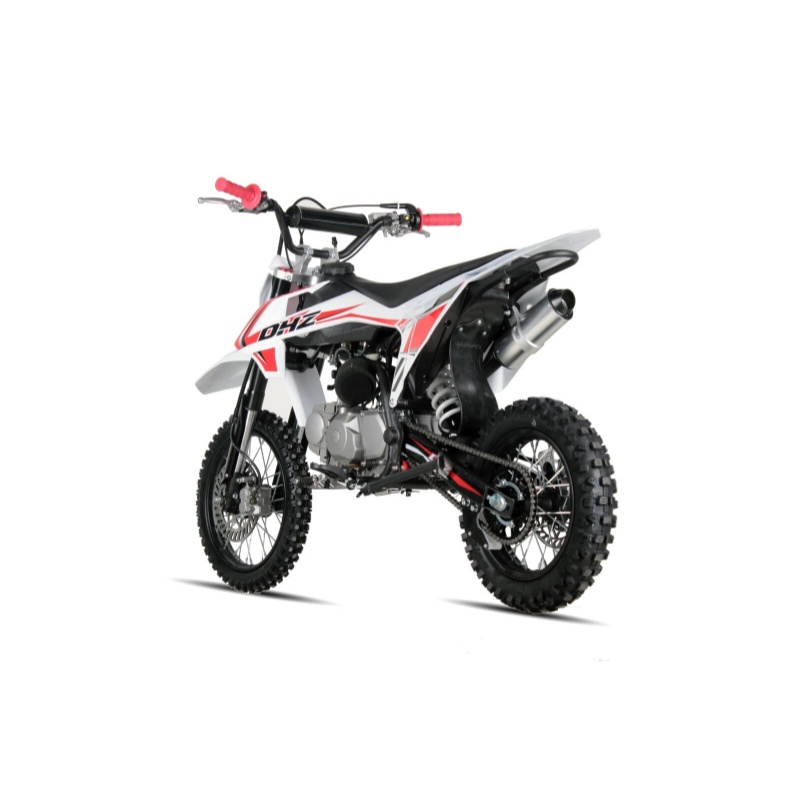

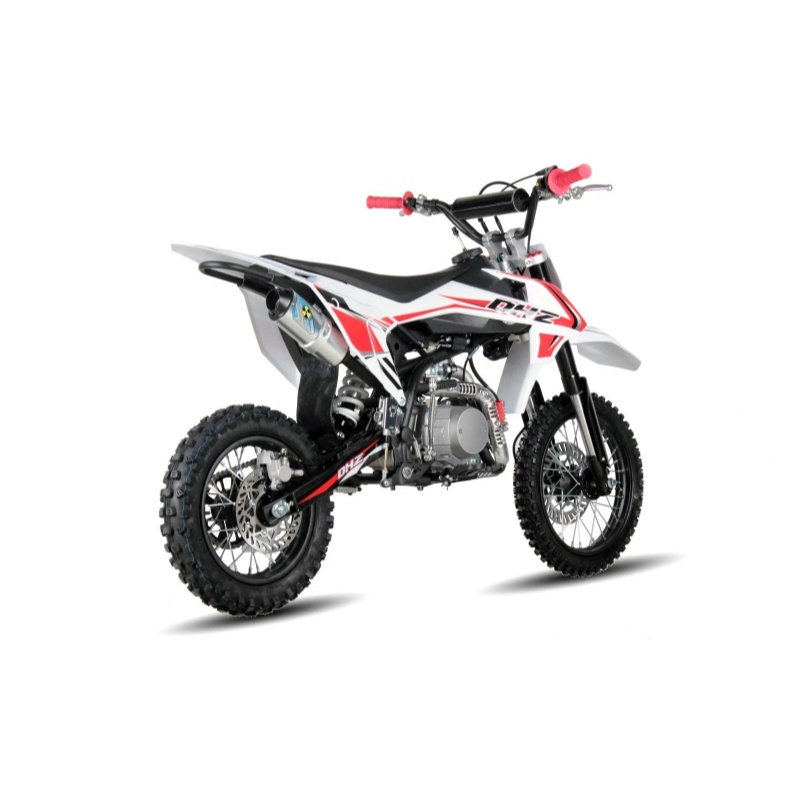

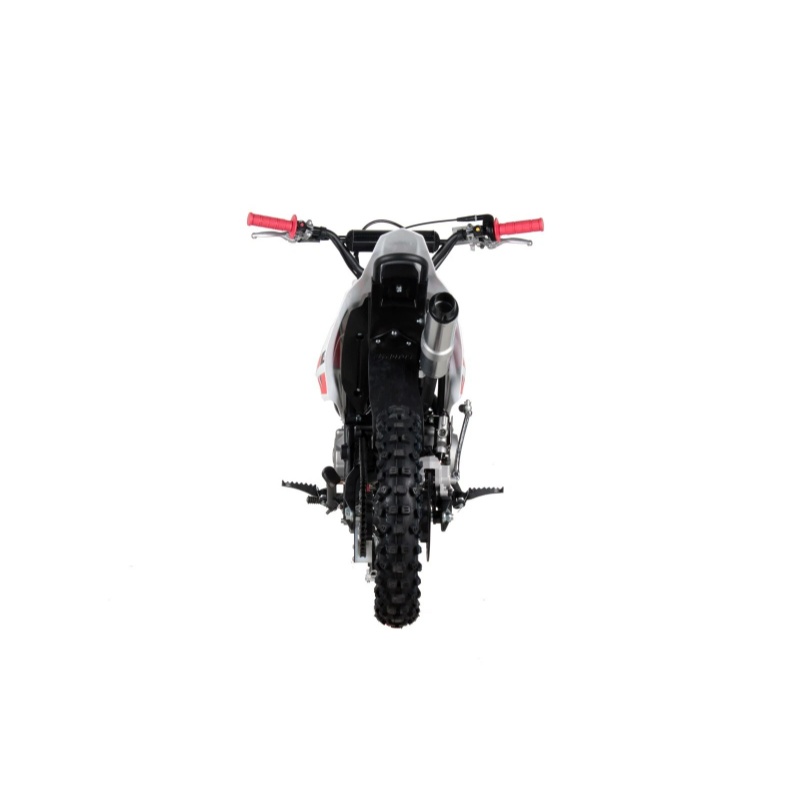

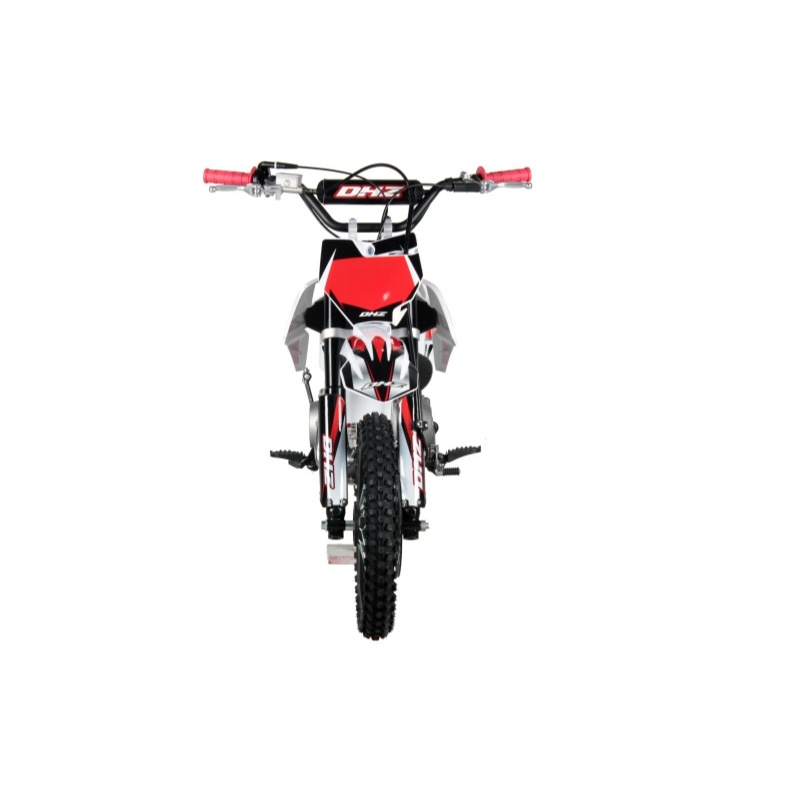

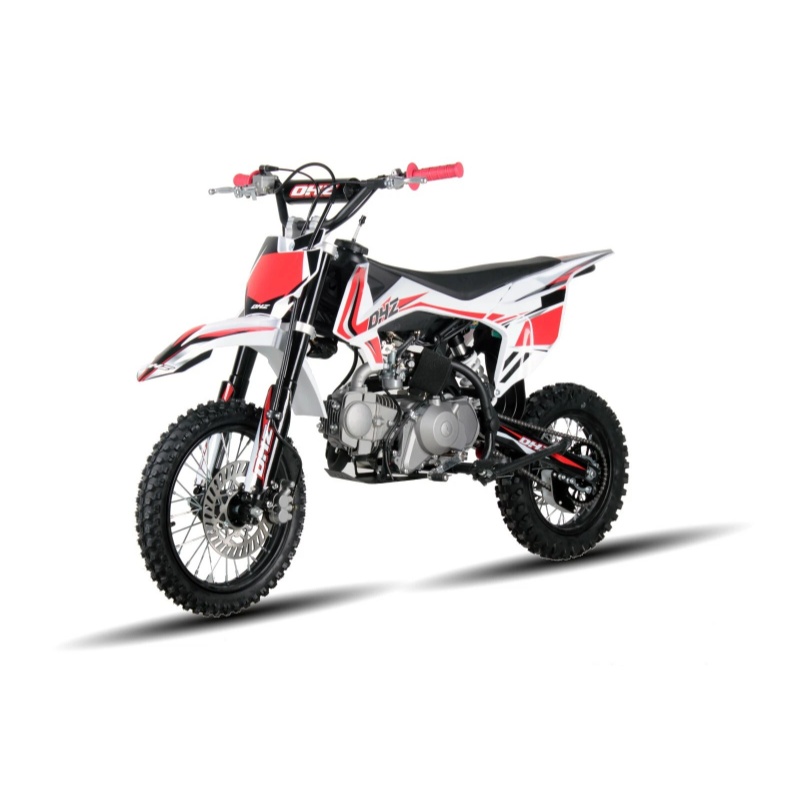

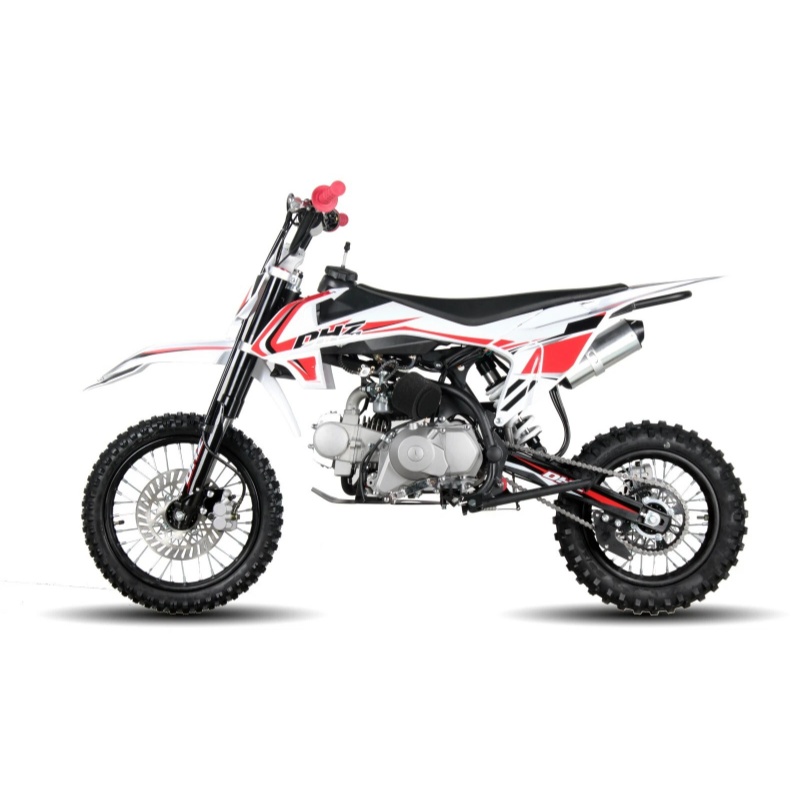

DHZ OUTLAW125E Manual 4 Stroke 125cc Dirt Bike
DHZ OUTLAW125E – Power, Control & Performance
Unleash your off-road potential with the DHZ OUTLAW125E, featuring a 125cc LIFAN 4-stroke engine, 4-speed manual transmission, and electric & kick start for ultimate control. Built for rugged trails, it comes with inverted front forks, a hydraulic brake system, and a heavy-duty steel frame to handle any challenge.
Key Features:
- 125cc LIFAN Engine – Reliable & Powerful
- 4-Speed Manual (N-1-2-3-4) – Perfect for Experienced Riders
- Hydraulic Disc Brakes – Superior Stopping Power
- High-Performance Suspension – Smooth Off-Road Handling
Get ready to ride!
General | |
Brakes | 870mm |
Fuel Tank | Heavy Duty 4.5L Fuel Tank, with Plastic Petrol Cap |
Sticker | Red DHZ Sticker Kit |
Front Suspension | Inverted Forks, Non-adjustable |
Rear Suspension | Hydraulic Rear Shock, Non-adjustable |
Compression | 9.3:1 |
Handle Height | 870mm |
Front Tyre | 60/100-14 Knobby Tyre |
Rear Tyre | 80/100-12 Knobby Tyre |
Exhaust | Chromium-plated iron exhaust pipe, Heavy Duty Aluminum Muffler |
Handlebar | Heavy Duty Steel Tall Handlebar |
Handlebar Grips | Soft Grip |
Magneto Type | Electronic Ignition System |
Ground Clearance | 250mm / 1150mm |
Spark Plug | A7TC Plug |
Swingarm | Heavy Duty Steel Swing Arm |
Fuel Capacity | 4.5L |
Triple Clamps | Forged Polished Alloy Triple Clamp |
Engine Oil Grade | 10W/40 Mineral 4 Stroke Engine Oil / 900ml |
Intake / Exhaust | High Performance Intake Manifold |
Quad Dirt Bike Parts | |
Additional Information | Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. |
Fairings | Red / White |
Throttle | Standard Throttle Assembly |
Wheels | Front Wheel: 1.40 x 14 Black Steel Rim with Heavy Duty Spokes & Alloy Hub Assembly, 15mm AxleRear Wheel: 1.85 x 12 Black Steel Rim with Heavy Duty Spokes & Alloy Hub Assembly, 15mm Axle |
Bore and Stroke | 52.4mm x 55.5mm |
Ignition Mode | CDI |
Product Size | 1630mm x 750mm x 995mm |
Technical | |
Chain Adjuster | Standard Chain Adjuster |
Chain Roller | Nylon Chain Roller |
Foot Peg | Heavy Duty Steel Footpeg |
Gear Ratio | Primary Reduction: 3.722 i1/i2/i3/i4: 2.833/1.706/1.238/0.958 |
Gear Shifter | Standard Gear Shifter |
Kick Starter | Heavy Duty Kick Starter |
Levers | Alloy Fold Back Brake Lever |
Muffler | 30mm |
Seat | Black Foam Seat |
Engine Model | 1P52FMI |
Engine Type | LIFAN |
Starting Mode | Electric Start / Kick Start |
Engine Oil Capacity | 900ml |
Carburetor | PZ-22 Carburettor |
Chain | SF #420 Chain |
Cooling System | Air Cool |
Frame | K Type Double Tube Beam |
Transmission | 4 Speed Manual - N1234 (4Up), Start in N Gear |
Sprocket Tooth Count | 15/41T 420pitch |
Fuel Type | High Octane Unleaded Fuel (93 or higher) |
Maximum Output | 5.8kw / 7.78hp |
Maximum Power | 8.5n.m / 5000rpm |
Rider | |
Important Safety & Product Information | Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride dirt bikes that are meant for adults, even as passengers. Do not carry any passengers on dirt bikes that are meant for one person. Dirt bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any dirt bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. |
Packaging | |
Gross Weight | 87kgs |
Packaging Dimensions | 1320mm x 425mm x 640mm |
Crossfire Motorcycles Warranty/Servicing Conditions:
Please ensure you register your machine at: http://crossfiremotorcycles.com/warranty-registration/ within one week of purchasing
Assembly
Please ensure the product is properly assembled before use. Any Crossfire machine can only be assembled by a licensed mechanic in a licensed workshop. A receipt of payment for assembly may be required when making warranty claims for parts.
Servicing
Full service has to be conducted after 1 month of invoice date or after 10 hours of riding, whichever comes first. A receipt of payment for the service may be required when making warranty claims for parts. Your warranty will be voided, if any of these conditions are not met. Your warranty can be voided, if any non-genuine or non-standard part has been fitted to your machine.
All consequent services need to be conducted as per the machine user manual. If in doubt, please contact Crossfire Motorcycles for further information. All receipts of payment for the services may be required when making warranty claims for parts.
Operating the Machine
Crossfire Motorcycles Pty Ltd cannot be held responsible for any theft, damage or injury caused whilst operating the machine. Warranty does not cover any loss or damages incurred from reckless use of the machine, accident or collision. The upkeep and maintenance is the responsibility of the driver/rider and should be done prior to using the machine. Please refer to Assembly and Servicing above.
NSW Pre purchase check list (if not in NSW please find local state check list prior to purchase)
Quad Bike Safety – What You Need To Know
Quad Bike Training (NSW list of registered ATV organisations. Please look up in own state.)
Postage and Transit Insurance
Products damaged in transit will not be covered unless you have chosen Transit Insurance option ($55) at the time of purchase. If you have paid for Insurance, and you have received any item damaged in transit or missing components, please advise us within 1 week of receiving the product. All claims after 1 week will not be accepted.
Warranty Claim
All products are tested prior to packaging and dispatch. We warrant that all products are free from defect, and we will replace or repair any part that proves to be defective, at no charge, when your claim is under warranty.
Crossfire ATVs, UTVs, Go Karts and Motorbikes are covered by Parts Only Warranty ranging from 6 months and up to 2 years*.
All vehicles up to and including 250cc (except for 250GT – refer below to point 2) are covered by 6 months warranty, which can be extended to 12 months*
* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 12 months for vehicles up to and including 250cc. Please make sure you have proof of services.
All vehicles above 250cc (and including 250GT) are covered by 12 months warranty, which can be extended to 24 months*
* If 1 month and 6 months services have been done by a Crossfire Dealer – warranty is extended to 2 years for vehicles above 250cc (and including 250GT).
Please make sure you have proof of services. If you have any questions about the points above and require clarification, please contact Crossfire office.
In case where parts are claimed under warranty, please go to http://crossfiremotorcycles.com/warranty-claim/
We will advise if damaged parts are deemed to be covered under warranty, and on exact course of action. In a lot of cases, you will be required to ship any parts that you are claiming under warranty to our office. Please ship Only when advised by us to do so:
Crossfire Motorcycles
Warehouse 9/274-276 Hoxton Park Road,
Prestons, NSW, 2170
attention: Warranty Claims.
The part will be examined and tested by our mechanics and replaced, or repaired if deemed faulty. The buyer is responsible for all postage costs of returning any faulty part to us.
If a part has been deemed to be fault free, the customer is responsible for any return postage costs and will be charged for assessment time, at our discretion. Part will be held until these fees are paid. In case that the payment is not received and no pick up is arranged within 1 month, the part will be advertised and then publicly auctioned as per regulatory requirements.
Please ensure you understand these conditions before buying.
This warranty policy has been created with the aim of providing the best customer service and after sales service in the Australian motorcycle industry.
