GMX The Beast Green 125cc SPORTS Quad Bike
|Physical Kill Switch||The physical kill switch is a switch you flick if you want the motor to cut out, it is generally located on the left side of the handle bar|
|Dead Man Switch||The dead man switch clips onto the rider so if the rider comes off the bike the motor cuts out, it is located behind the seat|
|Governable Speed||A screw on the handle bar allows you to limit the speed the quad bike reaches. This may be released as the rider gains more confidence and wants to reach higher speeds|
|Maximum Speed||70km/hr (depending terrain surface)|
|Bore x Stroke||54mm x 55.5mm|
|Front Tyre||Heavy Duty Tyres 19*7-8 / 18*9.5-8 ( 8 inch)|
|Rear Tyre||Heavy Duty Tyres 19*7-8 / 18*9.5-8 ( 8 inch)|
|Tyre Pressure||65±5 Kpa|

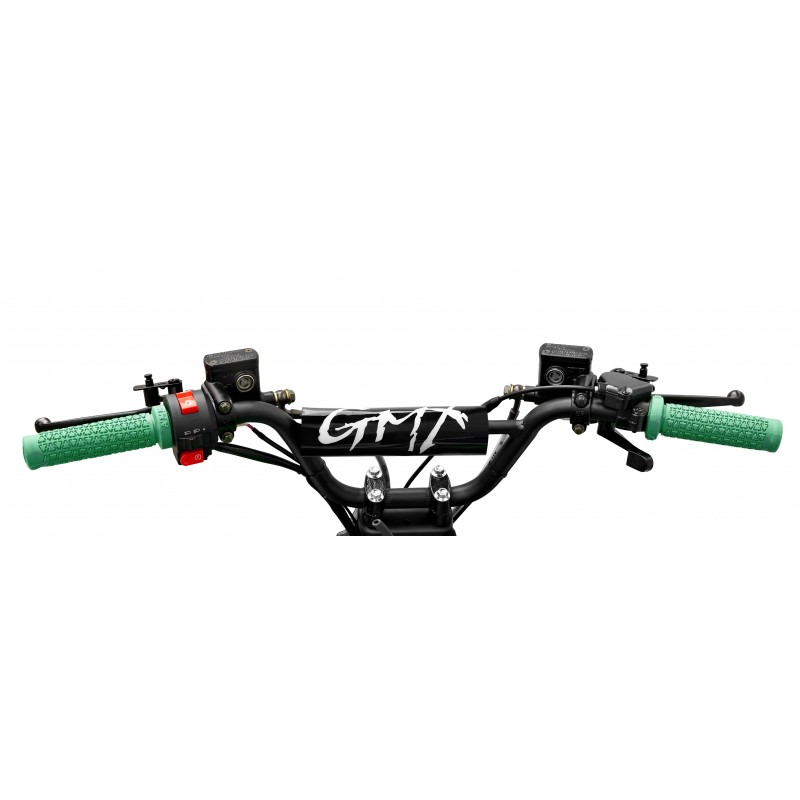

|Handlebar||High Bend Mini Bar|
|Handlebar Grips||Soft High Grip Rubber|
|Magneto Type||Electronic Ignition System|
|Throttle Control||Thumb Throttle|
|Engine Oil Grade||Non Synthetic 15W/40-SE - 4 Stroke Engine Oil|
|Optimal Engine Oil Level||800mL|
|Intake / Exhaust||Twin exhaust|
|Assembly||Products are up to 90% assembled. Minor assembly is required and in the interested of safety it is recommended that you have the quad bike assembled by a qualified, skilled small engine mechanic.|
|Additional Information||Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only.|
|Engine Model||125cc Lifan 154FMI/ GMX series 1 Engine|
|Engine Type||4 Stroke - Single Cylinder. Air Cooled|
|Starting Mode||Electric Start|
|Clutch Type||Heavy Duty Wet Multi Plate|
|Transmission||Semi-automatic with Reverse(R-0-1-2-3)|
|Shock Absorber||Spring Shock Absorber|
|Fuel||Regular Unleaded (92 or higher)|
|Fuel Delivery System||PZ 22 Carburetor|
|Front Brake||Front Hydraulic Disc Brakes|
|Rear Brake||Rear Hydraulic Disc Brakes|
|Gearing||14 Tooth Front / 37 Tooth Rear|
|Idle Speed||≤800 ppm|
|Maximum Output||KW / HP: 8HP|
|Maximum Power||5.4Kw/8500 (r/min)|
|Maximum Torque||7.5N.m/ 6500 (r/min)|
|Rated Loading Capacity||120kgs|
|Rider Capacity||1 Person|
|Product Size||1450 x 980x 1000 mm|
|Important Safety & Product Information||Always wear a helmet, product clothing and gear such as goggles, long sleeves, long pants, boots and gloves/hand protection when riding these products. For motorised products a motorbike standard helmet needs to be worn. Never let children ride quad bikes that are meant for adults, even as passengers. Do not carry any passengers on quad bikes that are meant for one person. Quad bikes are not all-terrain vehicles so they cannot go safely on all types of terrain. Avoid riding on rough terrain or steep slopes. Ride on familiar tracks and beware of obstacles. Never ride under the influence of alcohol/drugs. Ensure children are supervised at all times near any quad bike activity. Always carry a mobile phone or radio device so you can contact help in case of an emergency. Always adhere to the maximum load of the product. Minor assembly is required In the interest of safety it is recommended that you have this bike assembled by a skilled bike mechanic. You may need to provide proof of being assembled by a skilled mechanic, if not a report from a small engine mechanic advising the issues to process you warranty claims. Labour is not covered under warranty. Warranty is a parts replacement warranty and does not cover labour costs. Defective parts may need to be sent back to us for inspection. Before using the product, check that all nuts, wiring and bolts are tightened as they can become loose during shipping. For the first tank, run in the engine, please do not over-rev the engine for the first 1-3 months as the engine is new and should be treated as such. This item is intended for off road use only.|
|Packaging Dimensions||1300 x760 x640 mm|
GMX MOTORBIKES WARRANTY
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The manufacturer warrants this product to be free of manufacturing defects for a period of 12 months from date of purchase. This Limited Warranty does not cover normal wear and tear( exlcusions apply) or any damage, failure or loss caused by improper assembly, maintenance, or storage or use of the GMX product. Some parts will have a limited warranty period, please see below. This warranty is a part replacement warranty.
3 Month Parts Replacement Parts
Electrical compenonts, supsenison, drive train and brakes/fittings.
30 Days Parts Replacement Parts
Bearings, tires, tubes, cables, clutches, brake pads, seats
Minor assembly is required and in the interest of safety and warranty it is recommended that you have this product assembled by a qualified, skilled small engine mechanic.
You may need to provide proof of being assembled by a skilled mechanic if not a report from a small engine mechanic advising of the issues to process your warranty claims.
The warranty is a parts replacement warranty and labor is not included, defective parts may need to be sent back for inspection.
This Limited Warranty will be void if the product is ever;
- Used in a manner other than for recreation or transportation
- Modified in anyway
- Rented or commercial use.
The manufacturer is not liable for incidental or consequential loss or damage due directly or indirectly to the use of this product.
Always adhere to the maximum load of the product, over loading the product will void the warranty.
